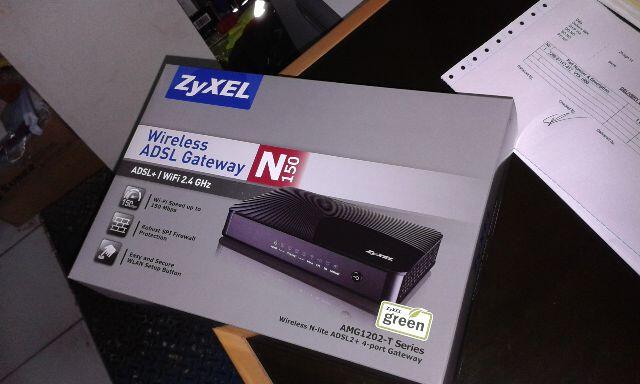

ZyXel AMG1202-T10B "Wireless N-lite ADSL2+ 4-port Gateway"

Main Content

ZyXel AMG1202-T10B "Wireless N-lite ADSL2+ 4-port Gateway"
"Wireless N-lite ADSL2+ 4-port Gateway"

High Speed 802.11n ADSL2+ Wireless Gateway

802.11n technology for extreme performance and coverage

The ZyXEL AMG1202-T10B features 802.11n technology that provides a solution for ultimate speed and coverage. With data rates of up to 150 Mbps, the AMG1202-T10B provides stable, reliable wireless connections for high-speed data and multimedia delivery. It eliminates dead zones and extends coverage by taking advantage of IEEE 802.11n technology and is backward compatible with any IEEE 802.11 b/g Wi-Fi certified device. Besides, AMG1202-T10B supports multiple SSIDs with individual security and scheduling settings that facilitates different service levels for service providers.

Wi-Fi Protection Setup (WPS)

Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. With WPS, the device will automatically configure a wireless network with a network name (SSID), strong WPA data encryption and authentication. WPS makes the configuration of secure personal wireless networks as simple as pushing a button or entering a Personal Identification Number (PIN) code.

Robust SPI Firewall security

The SPI Firewall works on the network layer by examining header and footer of a packet, and it also ensures the packet belongs to a valid session. Based on Stateful Packet Inspection (SPI), Denial of Service (DoS) and Distributed DoS (DDoS) features, the AMG1202-T10B provides the first-line defense against hackers, network intruders and other harmful threats.

Quality of Service (QoS) support

The AMG1202-T10B comes equipped with essential ATM QoS features. Service providers can freely design their QoS policy and prioritize the mission-critical services such as IPTV and VoIP based on their service plans. This increases network efficiency and productivity to enable service providers to bring real multi-play into the daily life of residential users.

TR-069 remote management

With TR-069 standard management specifications, service providers are able to manage and configure client devices remotely without manual intervention from end users. This unique feature not only offers true “plug-and-play” experience but also reduces the complexity of deployment, and therefore saves operating and maintenance costs for service providers.

[img]ZyXel AMG1202-T10B "Wireless N-lite ADSL2+ 4-port Gateway"[/img]

System Specifications

ADSL Compliance
ITU 992.1 (G.dmt )
ITU 992.3 ADSL2 (G.dmt.bis)
ITU 992.5 ADSL2+
Reach-Extended ADSL (RE ADSL)
Annex L/M support
IEEE 802.11n compliance, backward compatible with 11b/g
Frequency operation: 2.4 GHz
64/128 bits WEP data encryption
WPA/WPA2 (Wi-Fi Protected Access) security
Wireless scheduler
Wi-Fi Protected Setup (WPS)
Port forwarding
SIP ALG pass-through
PPPoE pass-through
Dynamic DNS
IP alias
DHCP server/client/relay
RIP I/RIP II support
IGMPv1 and v2 support
IGMP proxy/snooping
UPnP support
IPv6 support
Stateful Packet Inspection (SPI)
Denial of Service (DoS) prevention
Multiple VPN (IPSec, PPTP) pass-through
Packet filtering
URL keyword blocking
Embedded Web configuration
TR-069 HTTPS support
Logs and statistics
SNMP v1 and v2 with MIB II
Remote management control: Telnet, FTP,Web, SNMP and DNS
CLI command via telnet/console
Hardware Specifications

ADSL port: 1 x RJ-11
Ethernet port: 4 x RJ-45
Power input: 9 V DC
Power on/off button
Reset button
WLAN on/off button
WPS button
One 3 dBi internal antenna
LED displays:
Ethernet (1-4)
Physical Specifications

Item dimensions (WxDxH): 164 x 115 x 28 mm (6.46” x 4.53” x 1.1”)
Item weight: 201g (0.44 lb.)
Packing dimensions (WxDxH): 296 x 147 x 37 mm (11.65” x 5.79” x 1.46”)
Packing weight: 398 g (0.88 lb.)
Environmental Specifications

Operating Environment
Temperature: 0°C to 45°C (32°F to 113°F)
Humidity: 10% to 90% RH (Non-condensing)
Storage Environment
Temperature: -20°C to 80°C (-4°F to 176°F)
Humidity: 10% to 95% RH (Non-condensing)

Safety: EN60950-1

yuk di liat

emoticon-Sundul Gan (S)
Jualan itu di FJB masbro
bisa tulis harusnya bisa baca emoticon-Big Grin
Kayaknya emoticon-Salah Kamar
emoticon-Salah Kamar

klo dagang di FJB Bray...
