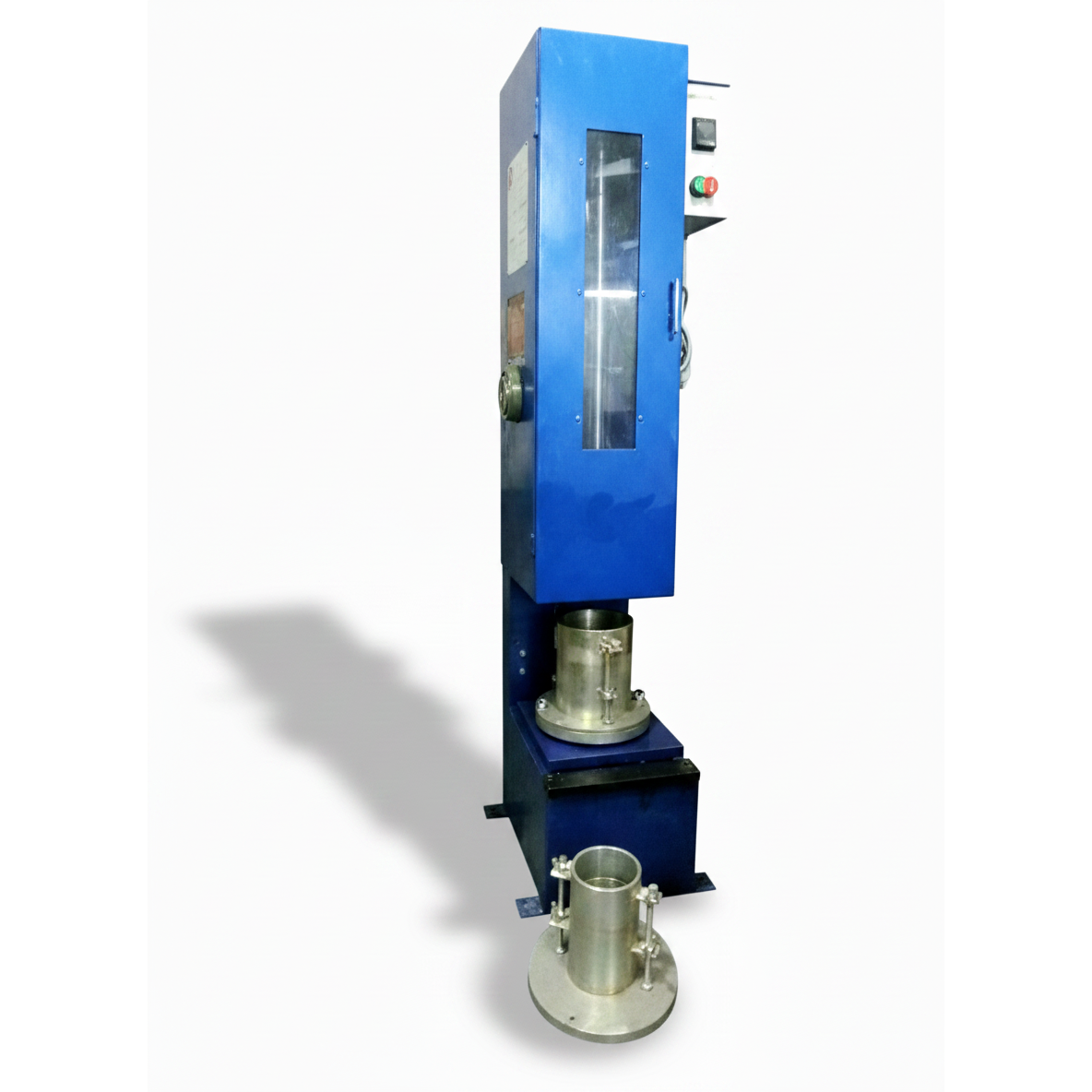

Specifications :
- Control Mounted on separate pedestal to prevent shock, power, start, and counter
- Counter push button; count setting and push-button reset
- Motor 1/3 hp with belt guards
- Hammer 10 lb. (4.54 kg) weight with 18” (457 mm) drop circular face
- lever with retaining pin catches and lifts Hammer
- Pedestal two clamps studs for mold clamp ring. separate guide pins for 4” (101 mm) and 6” (152 mm)
mold
- Mold holder clamp ring with knurfed nuts for 4” (101 mm) diameter mold
- Compaction foot Diameter 98.52 mm
- Sliding Weight 4535 gr
- Height Of Drop 457 mm
- Weight 224 kg
- Power 220 - 240 V. 50 Hz. 1 Ph
Gross Weight: 200 kg
