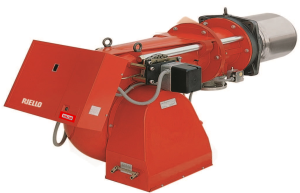

BURNER RIELLO GAS 9 P/M MODULATING
RIELLO GAS 9 P/M 870/1744 ÷ 3488 kW
MODEL :GAS 9 P/M TC FS1 3/220-380/60 220/60
HEAT OUTPUT: 870/1744-3488 kW
NATURAL GAS: 87/174-349 (Nm3 /h)
TOTAL ELECTRICAL POWER : 16,9(kW)
Series : GAS Size
Operation: ... One stage /2 Two stage P/M Modulating
Emission : ... Class 1 EN267 - EN676
Head : TC Standard head - TL Extended head
Flame control system :
FS1 Standard (1 stop every 24 h)
FS2 Continuous working (1 stop every 72 h)



Electrical supply to the system :
1/230/50 1/230V/50Hz
1/210/60 1/210V/60Hz
3/230/50 3/230V/50Hz
3/400/50 3N/400V/50Hz
3/230-400/50 3/230V/50Hz - 3N/400V/50Hz
3/210/60 3/210V/60Hz
3/220/60 3/220V/60Hz
3/380/60 3/380V/60Hz
3/220-380/60 3/220V/60Hz - 3N/380V/60Hz
Auxiliary voltage :
230/50 230V/50Hz
220/60 220V/60Hz
120/50-60 120V/50-60Hz
230/50-60 230V/50-60Hz
Peralatan standar:
- 1 flensa saluran gas
- 1 gasket flensa
- 1 saringan isolasi
- 8 sekrup untuk memasang flensa pembakar ke boiler (12 untuk GAS 8 P/M - GAS 9 P/M
- 4 rangkaian kabel untuk sambungan listrik
- 1 starter bintang delta (untuk GAS 9 P/M
- 2 rangkaian kabel untuk sambungan listrik ke starter bintang delta (untuk GAS 9 P/M
- 8 ring (untuk GAS 9 P/M
- 2 ekstensi batang (hanya untuk versi kepala diperpanjang  GAS 9 P/M
- Buku petunjuk pemasangan, penggunaan, dan perawatan
- Katalog suku cadang.






CATALOGE BURNER RIELLO GAS 9P/M MODULATING
