Materi upk smk

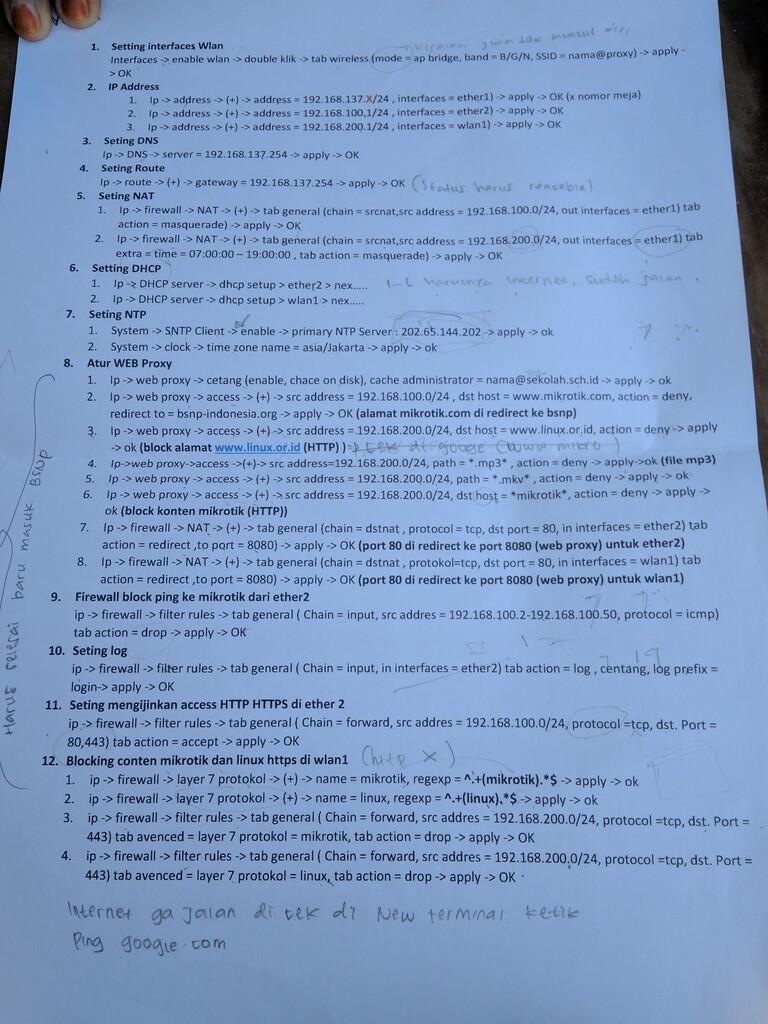

1. Setting interfaces Wlan

Interfaces -> enable wlan -> double klik -> tab wireless (mode = ap bridge, band = B/G/N, SSID = nama@proxy) -> apply -> OK

2. IP Address

1. Ip -> aMateri upk smkddress -> (+) -> address = 192.168.137.X/24 , interfaces = ether1) -> apply -> OK (x nomor meja)

2. Ip -> address -> (+) -> address = 192.168.100.1/24 , interfaces = ether2) -> apply -> OK

3. Ip -> address -> (+) -> address = 192.168.200.1/24 , interfaces = wlan1) -> apply -> OK

3. Seting DNS

Ip -> DNS -> server = 192.168.137.254 -> apply -> OK

4. Seting Route

Ip -> route -> (+) -> gateway = 192.168.137.254 -> apply -> OK

5. Seting NAT

1. Ip -> firewall -> NAT -> (+) -> tab general (chain = srcnat,src address = 192.169.100.0/24, out interfaces = ether1) tab action = masquerade) -> apply -> OK

2. Ip -> firewall -> NAT -> (+) -> tab general (chain = srcnat,src address = 192.169.200.0/24, out interfaces = ether1) tab extra = time = 07.00.00 – 19.00.00 , tab action = masquerade) -> apply -> OK

6. Setting DHCP

1. Ip -> DHCP server -> dhcp setup > ether2 > nex…..

2. Ip -> DHCP server -> dhcp setup > wlan1 > nex…..

7. Seting NTP

1. System -> SNTP Client -> enable -> primary NTP Server : 202.65.144.202 -> apply -> ok

2. System -> clock -> time zone name = asia/Jakarta -> apply -> ok

8. Atur WEB Proxy

1. Ip -> web proxy -> cetang (enable, chace on disk), cache administrator = HYPERLINK "mailto:nama@sekolah.sch.id" nama@sekolah.sch.id -> apply -> ok

2. Ip -> web proxy -> access -> (+) -> src address = 192.168.100.0/24 , dst host = HYPERLINK "http://www.mikrotik.com" www.mikrotik.com, action = deny, redirect to = bsnp-indonesia.org -> apply -> OK

3. Ip -> web proxy -> access -> (+) -> src address = 192.168.200.0/24, dst host = HYPERLINK "http://www.mikrotik.com" www.linux.or.id, action = deny -> apply -> ok

4. Ip -> web proxy -> access -> (+) -> src address = 192.168.200.0/24, path = *.mp3* , action = deny -> apply -> ok

5. Ip -> web proxy -> access -> (+) -> src address = 192.168.200.0/24, path = *.mkv* , action = deny -> apply -> ok

6. Ip -> web proxy -> access -> (+) -> src address = 192.168.200.0/24, dst host = *mikrotik*, action = deny -> apply -> ok

7. Ip -> firewall -> NAT -> (+) -> tab general (chain = dstnat , dst port = 80, in interfaces = ether2) tab action = redirect ,to port = 8080) -> apply -> OK

8. Ip -> firewall -> NAT -> (+) -> tab general (chain = dstnat , dst port = 80, in interfaces = wlan1) tab action = redirect ,to port = 8080) -> apply -> OK

9. Firewall block ping ke mikrotik

ip -> firewall -> filter rules -> tab general ( Chain = input, src addres = 192.168.100.2-192.168.100.50, protocol = icmp) tab action = drop -> apply -> OK

10. Seting log

ip -> firewall -> filter rules -> tab general ( Chain = input, in interfaces = ether2) tab action = log , centang, log prefix = login-> apply -> OK

11. Seting mengijinkan access HTTP HTTPS

ip -> firewall -> filter rules -> tab general ( Chain = forward, src addres = 192.168.100.0/24, protocol =tcp, dst. Port = 80,443) tab action = accept -> apply -> OK

12. Blocking conten mikrotik https

1. ip -> firewall -> layer 7 protokol -> (+) -> name = mikrotik, regexp = ^.+(mikrotik).*$ -> apply -> ok

2. ip -> firewall -> filter rules -> tab general ( Chain = forward, src addres = 192.168.200.0/24, protocol =tcp, dst. Port = 443) tab avenced = layer 7 protokol = mikrotik, tab action = drop -> apply -> OK
